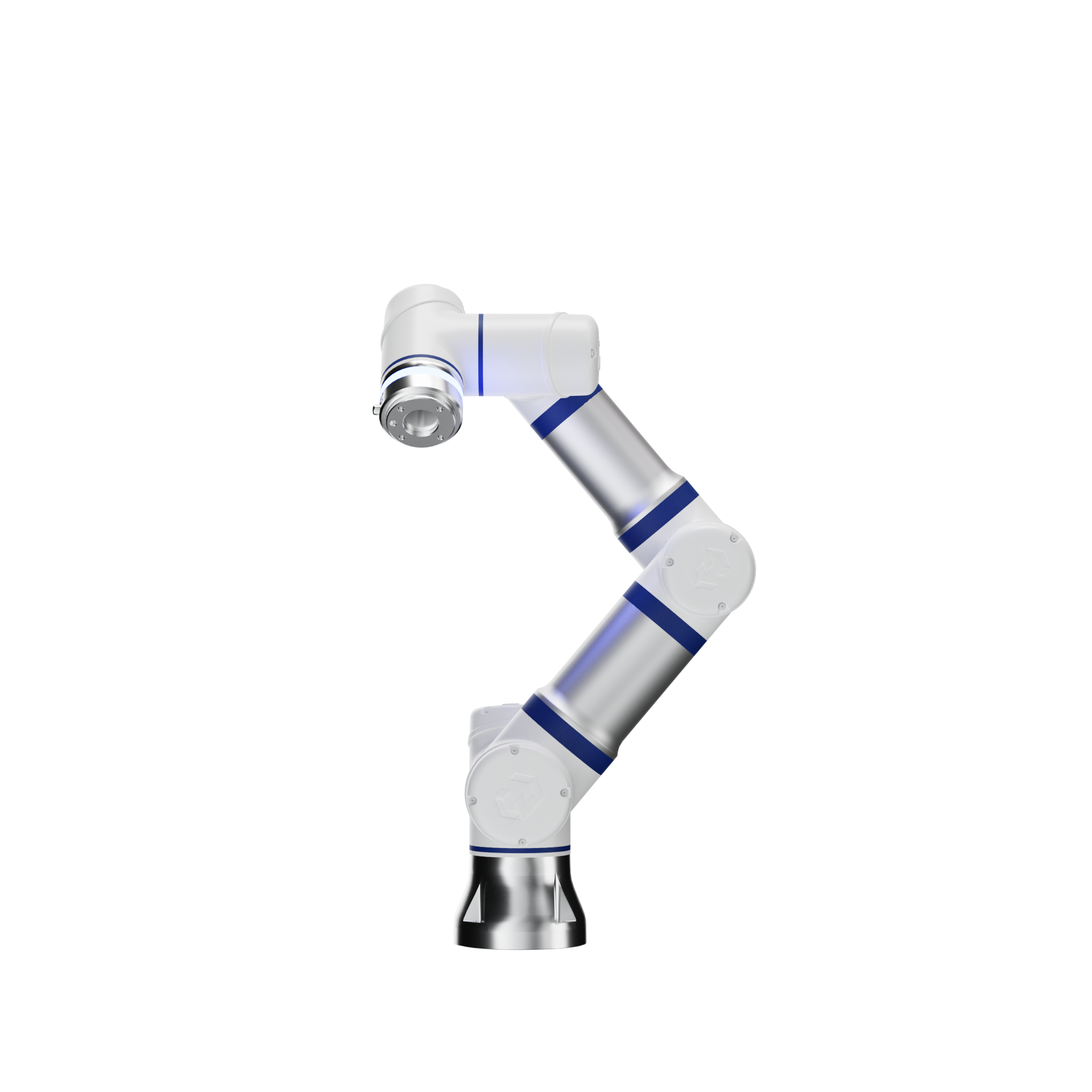

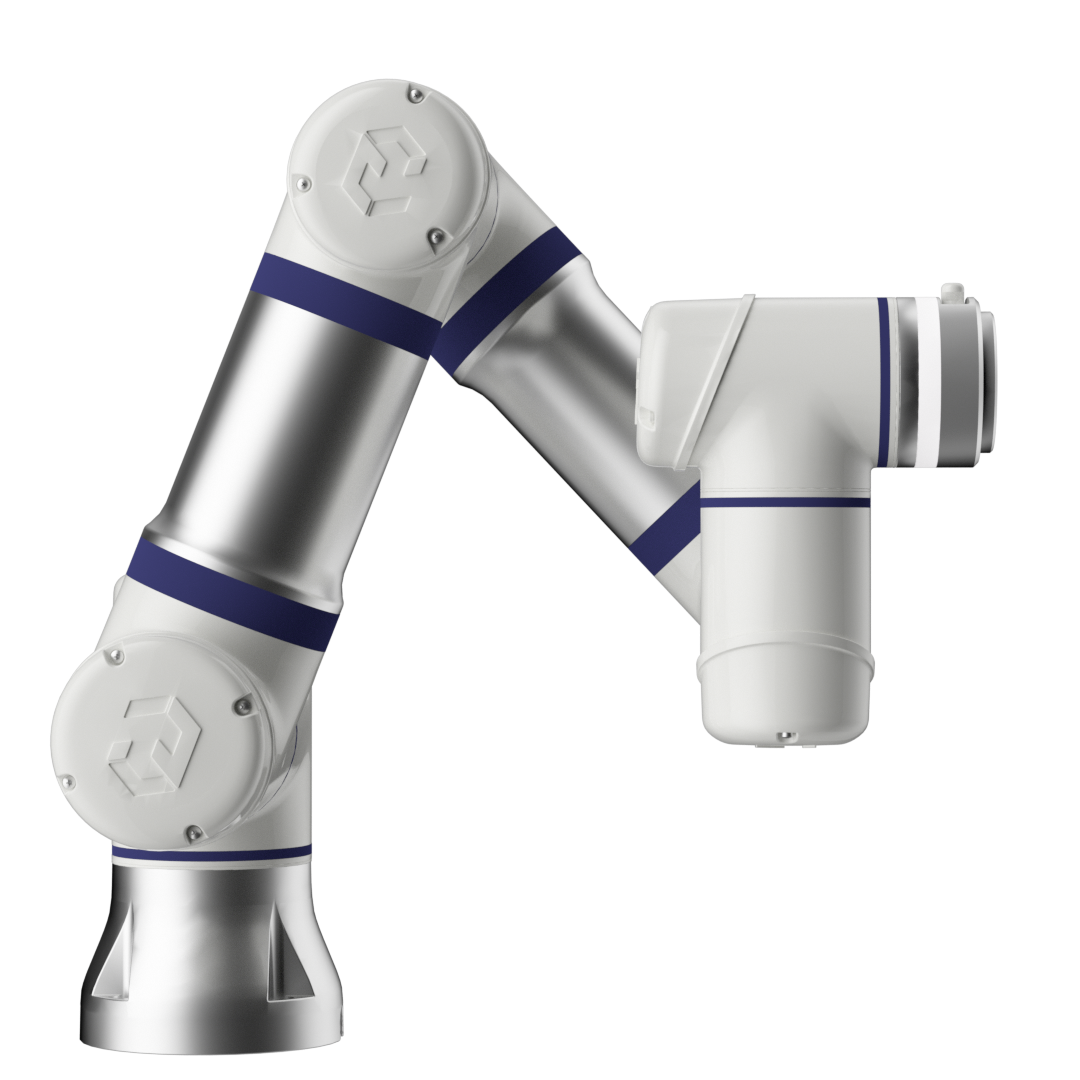

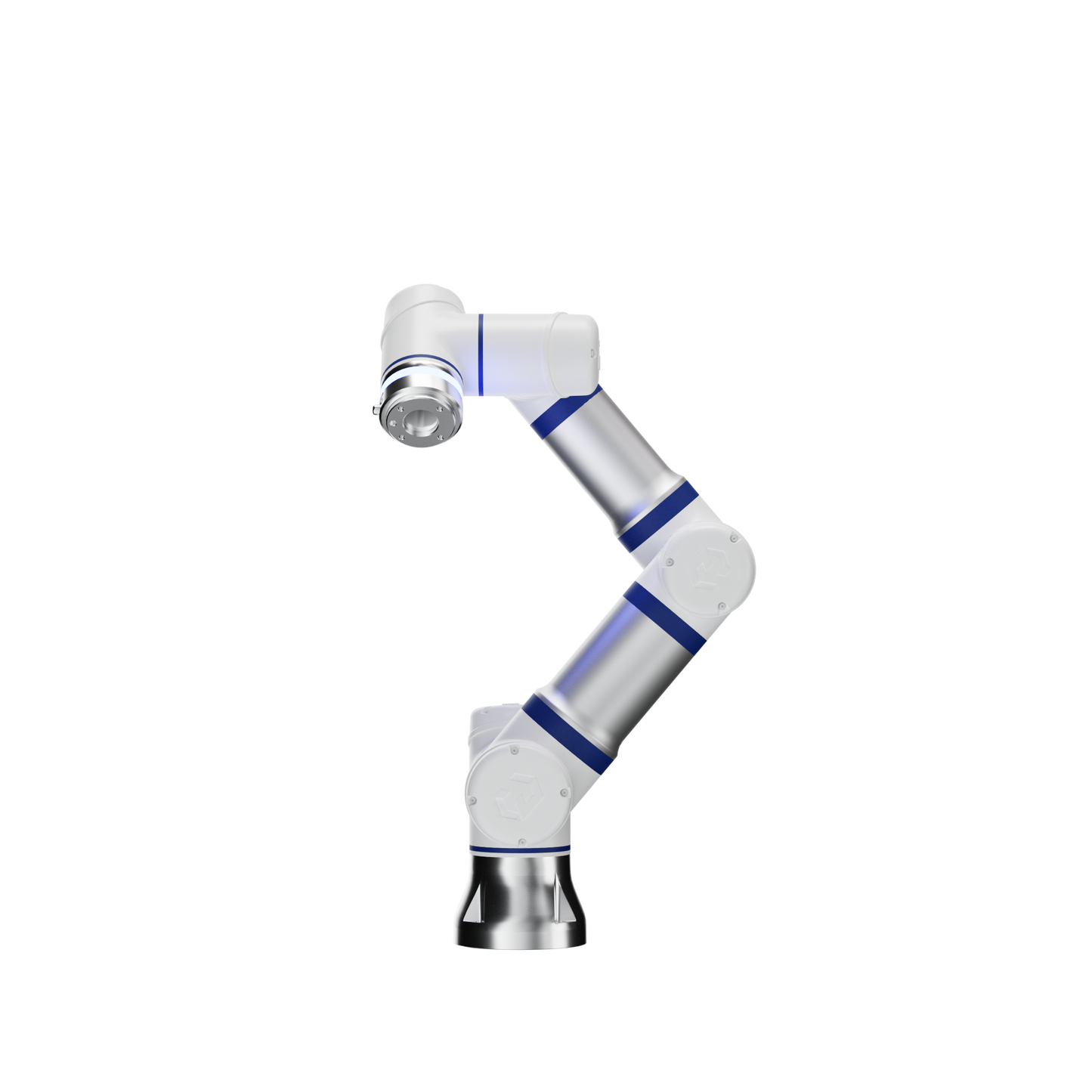

ELITE CS63 COBOT

Compact collaborative robot for precise, lightweight automation

The ELITE CS63 is a compact 6-axis cobot built for businesses that need accurate automation without giving up valuable floor space. With a 3 kg payload, 624 mm reach and ±0.02 mm repeatability, it is a strong fit for bench-top processes, light assembly, pick-and-place, testing, and education environments where consistency matters.

Its small footprint, low power draw and optional IP68 upgrade make it easier to deploy in tight production cells, mobile setups, and demanding environments. If you need a cobot that is easy to integrate and simple to redeploy, the CS63 is an efficient entry point into collaborative automation.

Best fit for

• Light assembly and screwdriving
• Pick-and-place, sorting and packaging
• Quality inspection and test stations
• Material processing tasks like sanding, polishing and drilling
• Research, training and education environments

Why businesses choose the CS63

• 3 kg payload with 624 mm reach for compact automation cells
• High repeatability of ±0.02 mm for precise, repeatable tasks
• Small Ø128 mm footprint and 15 kg arm weight for flexible installation
• IP65 protection standard, with optional IP68 for harsher environments
• Low typical power usage of 185 W to keep operating costs down

Robot Solutions Pty Ltd can help you scope the right end-of-arm tooling, integration approach and commissioning plan so the CS63 fits your workflow from day one.

Source: Elite Robots CS63 product page
